New Face Design: Renovated front door with an ergonomic handle, accompanied with a smooth polished stainless steel interior, and touch screen monitor with high speed processing.
Best Suited for cell culture: Much like its predecessor (the CPI series), the VCI/VMI grants an ideal environment for cell culture. Further advancements have been made to simplify user maintenance, while allowing safe & easy access to the samples inside.
Considering the effects of the various techniques of sterilization on the cells, Dry Heat Sterilization is the most ideal method used for incubators.

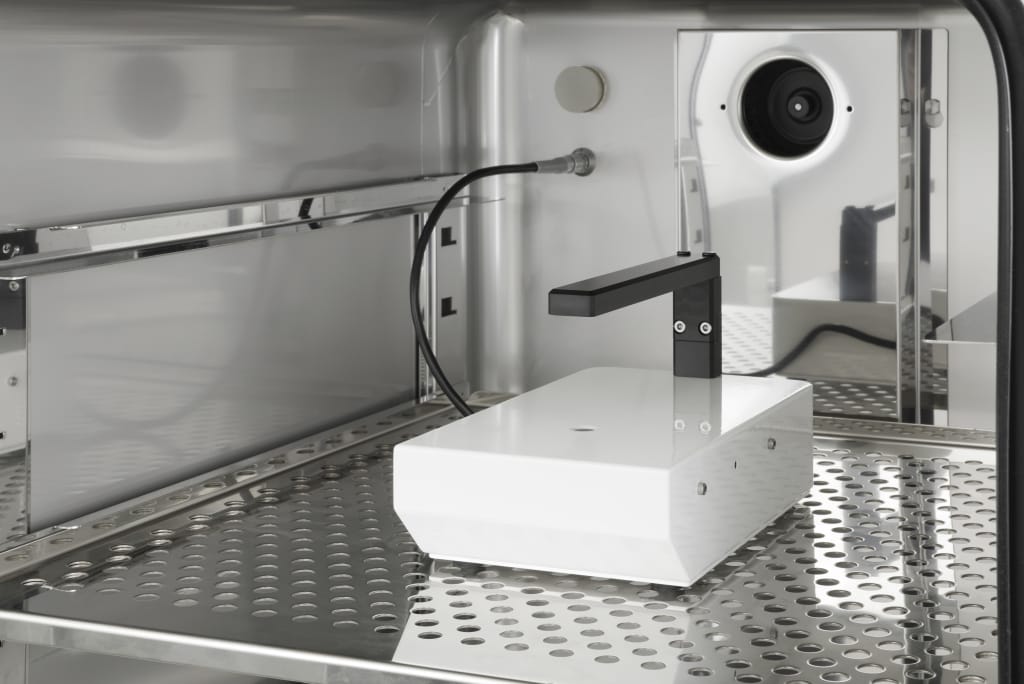

Users can connect to an optional, built in, cell monitoring system and observe the culture process on the front door panel display.
①Live: Allows observation without opening/closing the chamber. Ideal for stress sensitive cells.
②Timelapse: Allows periodical recording of cell reproduction curve. Tracing patterns in segments of cell formation and density.

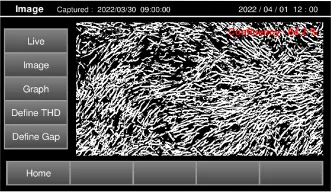

③Automated evaluation and recording of cell density. Confirmation of passage timing: human evaluation assisted with device evaluation allows confluency evaluation without interference to chamber granting a unified approach and setting to passage timing.
④Continuous analogy is visually graphed and recorded as above. Cell Quality Control: Comparative analysis between previous and present trial. Evaluation of efficiency and error can be easily viewed, quickly noticed, and corrected if needed.
| Exterior dimensions | 620 mm x 740 mm x 850 mm/ 24.4 in. x 29.1 in. x 33.5 in. (W x D x H) (Projections not included) |
| Interior dimensions | W481 mm × D531 mm × H640 mm |
| Capacity | Approx. 163 L |
| Outer facing | Electrogalvanized steel sheet (Baked powder coating) |
| Inner facing | Stainless steel plate (SUS304, SUS430) |
| Shelf board | W455 mm × D468 mm × H23 mm 4 boards in the standard configuration (10 boards max.) |
| Access board | φ29 mm (Standard configuration) |
| Temperature control method | Digital PID control |
| Temperature control range | Room temperature plus 5°C to 50°C (0.1°C steps) |
| Temperature control accuracy | ±0.1°C |
| Temperature uniformity | ±0.3°C |
| Temperature control range for dry-heat sterilization | 50°C to 160°C (1°C steps) |
| Temperature uniformity regarding dry-heat sterilization | ±3°C |
| Sterilization temperature setting time | 0.1 to 10.0 hours |
| CO2 sensor | NDIR sensor |
| CO2 concentration control range | 0.0%～20.0% |
| CO2 concentration control accuracy | ±0.1% |
| O2 sensor | - |
| O2 concentration control range | - |
| O2 concentration control accuracy | - |
| Humidifying method, humidity | Natural evaporation method (Vat water filling), 95% ±4% RH |
| Safety devices | Over-temperature protection, over-temperature alarm, CO2 alarm, O2 alarm, other various alarms |
| Product weight | 90 kg |
| Power supply | Single-phase 110-120V AC, 50/60 Hz, or Single-phase 220-240V AC 50/60 Hz, 7.5 A |
| Power consumption | 750 W(max.) |
| Power consumption (Watt-hour) | 75 Wh (at room temperature 25°C, set temperature 37.0°C, stable operation) |
| Working temperature range | 10°C ～ 30°C |
| Working humidity range | 30% ～ 80%RH |
| Storage temperature range | -20°C ～ 50°C |
| Storage humidity range | 20% ～ 80%RH |
| Options | Cell monitor Analogue output Alarm contact output Gas guard Door lock Cart Vertical joint bracket Dust collection filter |
| Exterior dimensions | 620 mm x 740 mm x 850 mm/ 24.4 in. x 29.1 in. x 33.5 in. (W x D x H) (Projections not included) |
| Interior dimensions | W481 mm × D531 mm × H640 mm |
| Capacity | Approx. 163 L |
| Outer facing | Electrogalvanized steel sheet (Baked powder coating) |
| Inner facing | Stainless steel plate (SUS304, SUS430) |
| Shelf board | W455 mm × D468 mm × H23 mm 4 boards in the standard configuration (10 boards max.) |
| Access board | φ29 mm (Standard configuration) |
| Temperature control method | Digital PID control |
| Temperature control range | Room temperature plus 5°C to 50°C (0.1°C steps) |
| Temperature control accuracy | ±0.1°C |
| Temperature uniformity | ±0.3°C |
| Temperature control range for dry-heat sterilization | 50°C to 160°C (1°C steps) |
| Temperature uniformity regarding dry-heat sterilization | ±3°C |
| Sterilization temperature setting time | 0.1 to 10.0 hours |
| CO2 sensor | NDIR sensor |
| CO2 concentration control range | 0.0%～20.0% |
| CO2 concentration control accuracy | ±0.1% |
| O2 sensor | Galvanic battery-type sensor |
| O2 concentration control range | 2.0%～80.0% |
| O2 concentration control accuracy | ±0.5% |
| Humidifying method, humidity | Natural evaporation method (Vat water filling), 95% ±4% RH |
| Safety devices | Over-temperature protection, over-temperature alarm, CO2 alarm, O2 alarm, other various alarms |
| Product weight | 90 kg |
| Power supply | Single-phase 110-120V AC, 50/60 Hz, or Single-phase 220-240V AC 50/60 Hz, 7.5 A |
| Power consumption | 750 W(max.) |
| Power consumption (Watt-hour) | 75 Wh (at room temperature 25°C, set temperature 37.0°C, stable operation) |
| Working temperature range | 10°C ～ 30°C |
| Working humidity range | 30% ～ 80%RH |
| Storage temperature range | -20°C ～ 50°C |
| Storage humidity range | 20% ～ 80%RH |
| Options | Cell monitor Analogue output Alarm contact output Gas guard Door lock Cart Vertical joint bracket Dust collection filter |
