SD-830
mini-Cube Single Drawer Incubator Open the Drawer to new possibilities
Inspired by our globally favored drawer type incubator, AD-3100, also known as the CUBE, the mini-Cube was developed to provide an even smaller, compact, and expandable incubator with the choice of using it for dry or humid culture. The most versatile incubator ever in the market.
Features
Inspired by our globally favored drawer type incubator, AD-3100, also known as the CUBE, the mini-Cube was developed to provide an even smaller, compact, and expandable incubator with the choice of using it for dry or humid culture. The most versatile incubator ever in the market.
Very much like its forerunner, the mini-Cube can also be used as a Dry or Humidified incubation unit. Heated from the Top & Bottom of the chamber, the mini-Cube promises a stable and well protected environment to preserve/recuperate the temperature inside its chamber.

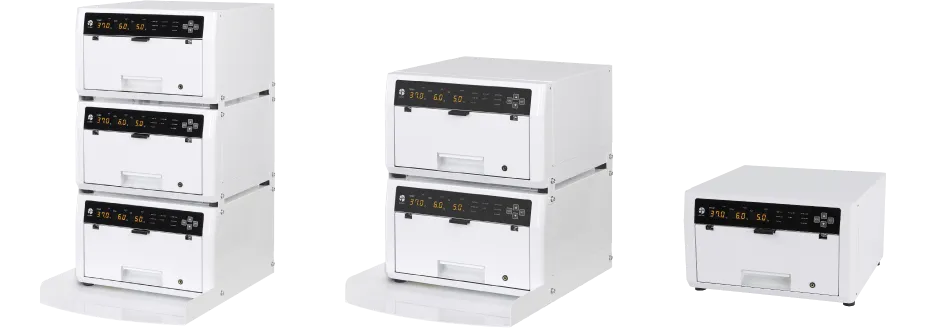

Three mini cubes stacked one on top of another, occupy roughly the same room as our 30L water-jacketed incubator.

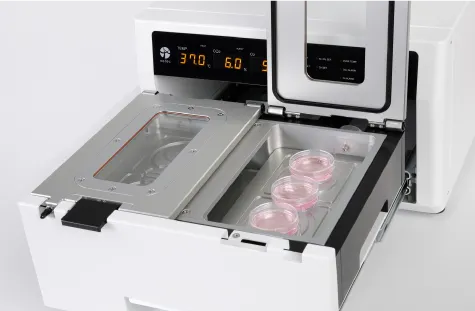

New renovated, optional Split chamber with less disturbance in the drawer
Humidified Incubation
Dry Incubation

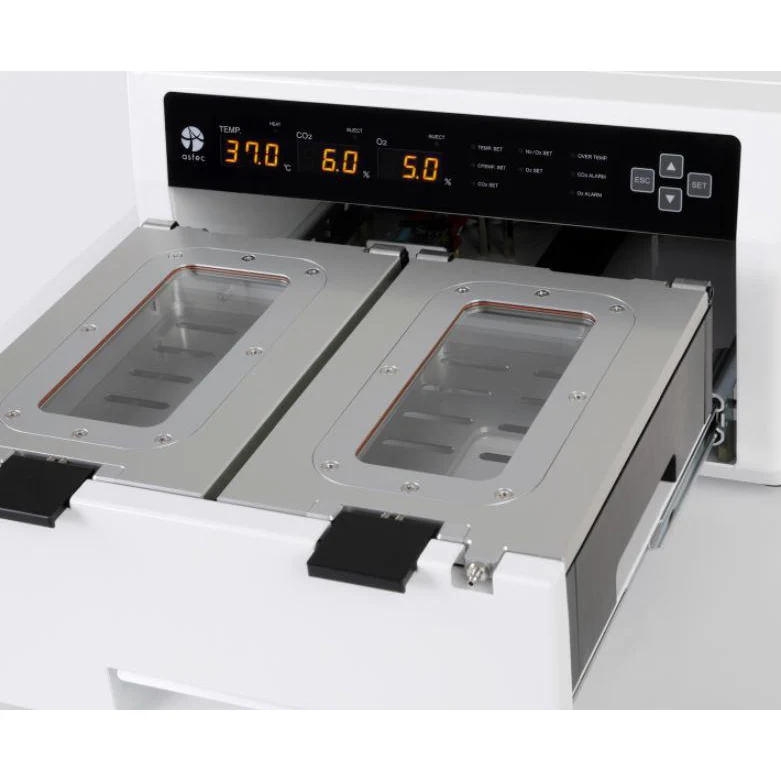

With the renovated divided lid option, dishes for up to 2 can occupy the same drawer. This unique feature allows you to access your desired dish in a half of the chamber with less disturbance to the other while keeping identification separate although compact.

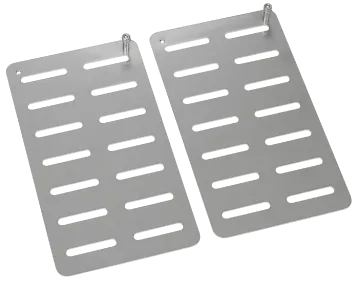

Bottom plates for Humidified incubation (standard) The humidity reaches more than 90% in 3 minutes.
Bottom plates for Dry incubation (Optional)
Flexibility and Stability in an affordable package
The mini-Cube adapts to the unique needs of your lab, whether you need to culture dry or humidified. With the ability to have multiple cultures under different conditions, mini-Cube promises to give you the Maximum possibility with the stable mechanism that Astec has accumulated over the last four decades.
Easy to clean
Autoclave-able drawer can be removed entirely. The solid base drawer is made from grade A aluminum and is easy to clean with distinctly designed curved corners.
Easy to access
Gas sampling port located conveniently in the front for easy access.
More Info
Gas Mixing System, no premixed gas needed
With a gas mixing system placed in the back of the unit, the mini-Cube conveniently takes the incoming gas (CO2, N2) and provides the necessary mixed level for your culture.
Specification
| External dimensions (mm) | W310 x D315 x H190 |
| Number of chambers | 1 |
| Usable dim. of chamber (mm) | W92.5 x D157 x H25 |
| Operational environment | 20～30C |
| Temp. accuracy | ±0.1C |
| Temp. uniformity | ±0.15C |
| Humidity | 95% ±4%RH |
| Humidity system | Natural evaporation |
| Required gas | CO2/N2 |
| Power | AC110-115V 0.8A (Max) 50/60Hz AC220-240V 0.6A (Max) 50/60Hz |
| Weight | 15kg |
| Two Divided door (mm) | 190 x 127 (x 2 doors) |
